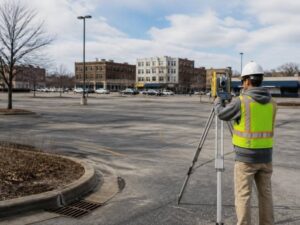

That flat, empty parking lot downtown might be the next apartment building, and a topographic survey is where the change begins. Turning acres of asphalt into housing sounds simple until you realize the lot was engineered to move water and park cars, not to support homes. Every slope, curb and hidden pipe under that pavement affects what gets built on top of it. A topographic survey reads the existing surface in detail, giving designers the accurate picture they need before a single space gets torn up.

Reconstructing the Existing Paved Surface as a Design Model

A parking lot has a shape, even if it looks dead flat. The survey captures that shape by recording elevations across the asphalt, curbs, islands, sidewalks, ramps and entrances. Together these points build a digital model of the lot exactly as it sits today.

Precision here pays off later. Designers work from that model to plan the conversion, so it has to represent the real surface rather than an idealized one. A model built from careful measurements shows the true relationships between the pavement, the perimeter and the surrounding streets.

The paved surface holds more variation than the eye catches. Curbs rise a few inches. Islands break up the grade. Ramps tilt toward drains. Recording all of it turns a parking lot that seems featureless into a detailed base the whole redevelopment can rely on.

Finding Drainage Patterns Hidden by a Visually Flat Lot

Parking lots hide their drainage in plain sight. A surface that reads as flat actually pitches gently toward inlets, funneling rain off the pavement through a designed system. The survey uncovers that hidden pattern, which matters enormously for redevelopment.

The measurements reveal what the eye misses. Subtle slopes steer water in specific directions. Low points collect it. Inlets pull it underground. Curb lines channel the flow. Runoff exits at particular spots along the edges. None of this is obvious from standing in the lot, yet all of it shapes how a new building has to handle water.

Understanding the existing drainage guides the new design. A conversion changes where water goes, since buildings and landscaping replace open pavement. Knowing how the lot drains now lets engineers plan a system that works with the site rather than fighting it.

Locating Legacy Features Beneath or Along the Pavement

Old parking lots carry leftovers, and the survey finds them. Crews locate the visible utility evidence, the manholes, vaults, light bases, bollards and walls, along with any abandoned site elements that need a closer look.

These features affect the redevelopment in different ways. A manhole or vault signals a utility line the design has to work around or relocate. Light bases and bollards mark old electrical work. A wall might need removal, or it might have to stay. Each located feature becomes a factor in the demolition and construction plan.

Some elements hint at what lies below without fully revealing it. An abandoned light base suggests buried conduit. A capped structure might mark a line nobody documented. The survey records the surface evidence and flags where further investigation makes sense, since a parking lot’s past often lingers underground.

Connecting Proposed Buildings to Surrounding Street Elevations

A new building can’t float. It has to tie into the streets, sidewalks and utilities around the lot, and the survey provides the elevations that make those connections work. Designers compare the proposed building against the perimeter grades to get the relationships right.

Several connections depend on this. Finished floor elevations have to relate sensibly to the surrounding grade. Accessible routes need to meet slope requirements from the entrance to the sidewalk. Garage entries have to transition from the street to the building without trapping water. Utility connections have to reach the existing lines at workable elevations.

Getting these ties right prevents expensive problems. A finished floor set wrong might sit below the street and collect runoff. An accessible route planned without accurate grades might fail its slope requirement. The survey supplies the perimeter elevations that let the design connect cleanly to everything around it.

Estimating Demolition and Regrading From Existing Conditions

Before the asphalt comes up, the survey helps estimate what removal and regrading will involve. The mapped surface supports preliminary calculations for earthwork, pavement removal, retaining needs and the transitions between the old site and the new one.

Those estimates shape the budget and the plan. Knowing how much pavement exists tells the team how much has to be removed. Comparing the existing grades against the proposed design shows where the ground has to be cut or filled. Spots where the new grade differs sharply from the old one might need retaining walls.

Early numbers prevent late surprises. A conversion planned without understanding the earthwork can run into unexpected costs once demolition starts. The survey gives the team a measured basis for these estimates, so the redevelopment moves forward with realistic expectations rather than hopeful guesses.

Frequently Asked Questions

How closely should elevations be collected across an existing parking field?

Close enough to capture the drainage pattern and the surface variation, which usually means a fairly tight grid plus extra points at curbs, inlets, ramps and grade breaks. A parking lot’s subtle slopes matter for redevelopment, so sparse points would miss the detail. The engineer’s needs and the site’s complexity guide the exact spacing.

Can a topo survey identify underground utilities without separate designation work?

Only partly. The survey locates visible surface evidence like manholes, vaults and valve boxes, which point to underground lines. It doesn’t trace or confirm buried utilities as a standard part of the work. Locating what’s actually underground usually requires separate designation services, which the team should arrange if utility positions matter to the design.

Why are curb and sidewalk grades important for residential conversion?

Because the new building has to connect to them properly. Curb and sidewalk elevations determine how accessible routes, entrances and drainage tie into the surrounding area. A residential conversion needs finished floors and walkways that meet these grades sensibly, so recording them accurately lets the design connect the building to the street without creating slope or drainage problems.
